Cycloidal Gears – Precision Engineering for Industrial Applications
Cycloidal Gears Optimized for heavy-duty operations with high torque and efficiency
definition of Our Cycloidal Gears

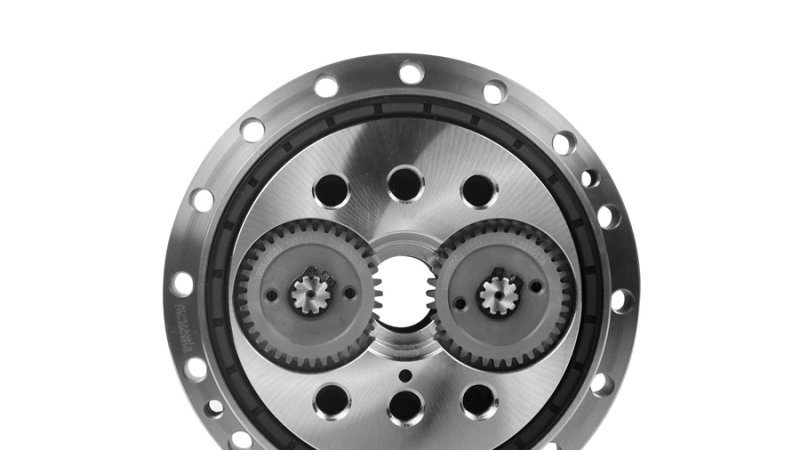

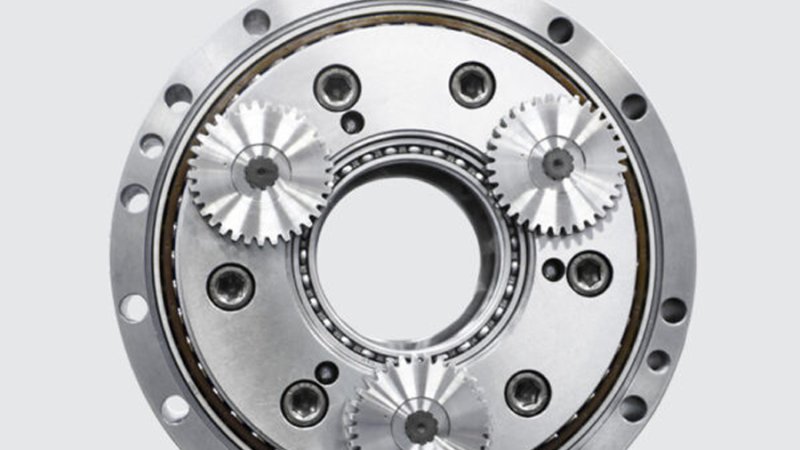

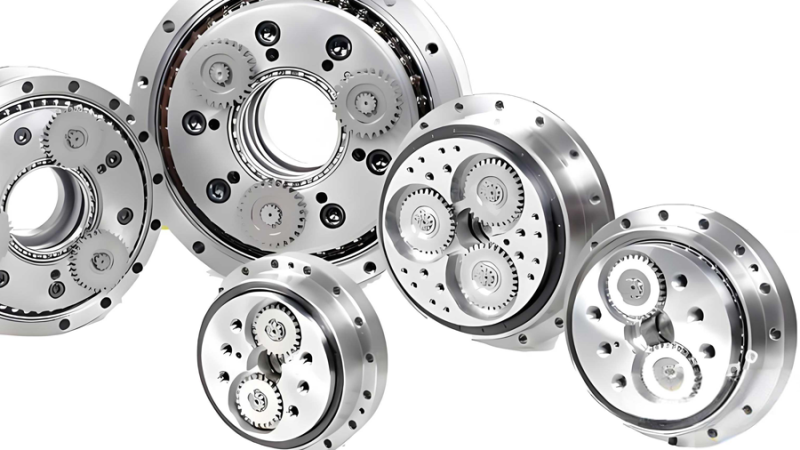

Our Cycloidal gears are a type of gear mechanism designed to handle high shock loads while maintaining efficiency and precision. They are ideal for heavy-duty, high-torque applications such as robotics, conveyors, and lifting mechanisms. Cycloidal gears have a unique tooth profile that makes them capable of transmitting large forces smoothly, making them essential for industries requiring high-performance gear systems.
Features of Our Cycloidal Gears
Features
- High Torque Transmission: Cycloidal gears offer excellent torque transmission with minimal backlash.
- Smooth and Quiet Operation: The tooth profile minimizes noise and vibration, making them ideal for precision machinery.
- Durable Design: Known for their resistance to wear and fatigue, they can handle extreme operating conditions.
- Efficiency: Cycloidal gears maintain high efficiency even under heavy loads.
- Compact and Lightweight: The unique design allows for a more compact and lightweight solution compared to traditional gears.
- Reduced Shock Loads: Ideal for applications that involve fluctuating loads and impacts.
Applications of Our Cycloidal Gears
Aerospace Equipment
Agricultural Machinery
Automotive
Construction Equipment
Power Transmission
Machine Tools
Robotics
Industrial Equipment
Custom Cycloidal Gears Service
Custom Cycloidal Gears Services
HiMaxGear offers extensive manufacturing services for gears, gear parts and assemblies. With highly skilled technicians, manufacturing expertise and a fully equipped facility, we can perform the precision service you need for your custom gear project.
- Hobbing – Worm Gears, Helical Gears, Shafts, Spur Gears, Splined Shafts, Sprockets
- Shaping – Spur Gears, Segments, Internal, External, and Splines
- Gear Grinding – Profile and Generating, Spur Gears, Helical Gears, and Crown Gears
- Thread Milling – Single- and Multi-Start Worms
- Thread Grinding – CNC, Single-Start, Multi-Start, External Worms and Threads
- Broaching
- CNC Machining – Drilling, Milling, and Tapping
- CNC Turning – Vertical and Horizontal
- Grinding – OD, ID, and Surface
- Inspection – Gear Analyzers, 3D Scanners, CMM and Manual Capabilities.
- Assembly
- Protoyping
Ten quality control processes
Incoming material inspection
First inspection of the process
Operator self-inspection
In-process inspection
Specialized inspection
End-of-process inspection
Finished product inspection
package
qa re inspection
Customer feedback improvement
Frequently Asked Questions - FAQ
What is the primary advantage of cycloidal gears over other gear types?
Cycloidal gears provide higher torque with smoother, quieter operation and better durability, especially under high shock loads.
Are cycloidal gears customizable for specific applications?
Yes, we offer customization options including different sizes, materials, and gear ratios to fit your needs.
What industries benefit most from using cycloidal gears?
Industries such as robotics, automated manufacturing, marine, aerospace, and agriculture frequently use cycloidal gears.
How does the tooth profile of cycloidal gears differ from other gears?
The cycloidal tooth profile helps distribute load more evenly, reducing wear and ensuring smoother power transmission compared to traditional gear teeth.
Can cycloidal gears be used in high-speed applications?
While cycloidal gears are ideal for high-torque, low-speed applications, they can be used in certain high-speed environments with proper design considerations.
What materials are best for cycloidal gears?
High-strength steel, stainless steel, and hardened alloys are common materials used to ensure durability and resistance to wear.
How can I determine the right size cycloidal gear for my application?
We offer detailed consultations to help select the appropriate size and gear ratio based on your application’s torque and load requirements.
Do cycloidal gears require frequent maintenance?
Cycloidal gears are designed for minimal maintenance due to their durability, but regular inspections for wear are recommended.
Are cycloidal gears suitable for extreme environments?
Yes, they perform well in extreme conditions like high temperatures, dust, and moisture, making them ideal for rugged industrial environments.
How do I install cycloidal gears?
Installation guides and technical support are available to ensure seamless integration into your systems.
